With the coming age of Internet of Things (IoT), it seems that this new technology must bring people more convenient life. But actually, there are now tons of smart bulbs, sensors or electronic devices flooding the market, do users really use them easily and smoothly? Unfortunately the answer is just "NO"! Because of these so-called smart devices CANNOT work together.

ASRock believes a qualified digital life should build on a well-connected and user-friendly environment. That’s why ASRock created X10. It's an all-rounder WiFi router which integrates IR and Zigbee functions anytime, anywhere, it allows you to manage, control or monitor smart devices across different brands. Just with a single APP.

ASRock X10 can perfectly serve you a simple and smart life which user never experience before. It’s just the goal which ASRock X10 is looking for!

ZigBee is the wireless protocol language that everyday devices use to connect to one another. ZigBee devices can transmit data over long distances by passing data through a mesh network of intermediate devices to reach more distant ones. ZigBee is typically used in low data rate applications that require long battery life and secure networking. ZigBee has a defined rate of 250 kbit/s, best suited for intermittent data transmissions from a sensor or input device.

ZigBee is the only standards-based wireless technology designed to address the unique needs of device-to-device communication in just about any market.

X10 allows users to control their home appliances remotely through infrared protocol. User may use great amount of IR database which has been implemented in cloud and can be download by APP, or learn the infrared codes of your home appliances.

Turn your smart phone into a universal remote controller for the home appliances. For instance, you can turn on the air heater or audio amplifier with ASRock X10 APP before arriving home.

X10 IoT router enables apps to enhance its mobile device coordinate with geo-fencing and location-based trigger command through an easy to use setting APP’s user interface. This enables apps to engage the location information of users with relevant sensor which can be automatically triggered and notification messages.

When users are leaving home (if the coordinate of X10 router was set as home), door sensor and alarm siren will be set as "ON" automatically. When uses are approaching home, the conditions will be turned "ON" and all sensors will be set as "DISABLE" without any control.

Even user is located in foreign country far away from his home, X10's advanced "machine to machine" (M2M) connecting technology enables secure and hassle free connectivity across multiple NATs. Forget those traditional setup methods such as fixed private IP, fixed public IP, DDNS, port forwarding and firewall rules. With X10 it's simple as signing up for a user account and registering your router, plus its machine to machine direct connect is much faster than traditional relay servers.

With wide sensor availability and supporting, user can also control numbers of connected devices from through the X10 smart home APP. The following list shows present supporting sensors and their relevant functions.

Device BrandSensor Function FieldProduct Model NameSupporting Function DescriptionTo Reset Sensor Once Pairing Failure
PhilipsLightingPhilips Hue White & Color Ambiance A19 BulbOn/Off/Color adjustment/DimingTrigger X10 to repair Hue bulb
PhilipsLightingPhilips Hue White & Color Ambiance A19 Bulb Gen 2On/Off/Color adjustment/DimingTrigger X10 to repair Hue bulb
PhilipsLightingPhilips Hue White & Color Ambiance A19 Bulb Gen 3On/Off/Color adjustment/DimingTrigger X10 to repair Hue bulb
PhilipsLightingHue WhiteOn/Off/DimingTrigger X10 to repair Hue bulb
CreeLightingLED Light BulbOn/Off/ Diming1. Install the bulb then turn off
2. turn on for 1 sec
3. turn off for sec
4. Repeat step 2& 3 for 4~5 times, until the bulb turn into off immediately
5. If bulb turned off for 1 sec, it has been rested for factory default.
6. Click the pairing button on X10 APP. Tune off the bulb again then on.
SengledLightingZ01-CIA19NAE26W Element Touch A19 LED BulbOn/Off/ DimingPress & hold the button on bulb for 20 sec. The bulb will flash for 5 times for repair.
GELightingSmart BulbsOn/Off/ Diming1. Install the bulb then turn off
2. Turn off the bulb for 3sec
3. Turn on the bulb for 3 sec
4. Repeat step 2& 3 for 5 times, until the bulb turn flash & become original brightness
GELightingLink 90W Equivalent Bright WhiteOn/Off/ Diming1. Install the bulb then turn off
2. Turn off the bulb for 3sec
3. Turn on the bulb for 3 sec
4. Repeat step 2& 3 for 5 times, until the bulb turn flash & become original brightness

Device BrandSensor Function FieldProduct Model NameSupporting Function DescriptionTo Reset Sensor Once Pairing Failure
SecurifiLeakage SensorSecurifi Flood SensorOn&Off Status / Battery statusRemove battery. Press & hold the pairing button and put battery back. LED will show green light for 2 sec then twinkle periodically to activate pairing mode
SecurifiDoor SensorSecurifi Door/Window Sensor SZ-DWS04On&Off StatusRelease the batter for 5 sec, Click the pairing button on X10 APP, the press & hold the temper switch for 3 sec, put the battery back
SwannDoor SensorSwann one Window & Door SensorsOn&Off StatusKeep pressing button to LED twinkle then release. Press button again while repairing
SwannMotion SensorSwann one motion sensorMotion StatusKeep pressing button to LED twinkle then release. Press button again while repairing
ACEXPDoor SensorDoor/Window Sensor - PRFT02On&Off Status / Battery statusPower on. Press & hold the button for 5~6sec then LED turn into red ready for pair. The LED will be off after pairing
ACEXPMotion SensorHuman Body PIR PZIR01Motion Status / Battery statusPower on. Press & hold the button for 5~6sec then LED turn into red ready for pair. The LED will be off after pairing
ClimaxDoor SensorClimax Door Sensor DC-15ZBSOn&Off StatusRemove battery paper, and hold function button for 10 sec. Then release function button to rese, LED will flash one time and finish pairing
ClimaxMotion SensorClimax Motion Sensor IR-9ZBS-SLMotion StatusPower on. Click the pairing button on X10 APP, then press & hold the sensor button for 10 sec. Then release the button.

Device BrandSensor Function FieldProduct Model NameSupporting Function DescriptionTo Reset Sensor Once Pairing Failure
SecurifiPower OutletSecurifi Peanut PlugOn/OffPress and hold the button 10 sec then release, unplug the outlet and plug it again
SamsungPower OutletSamsung SmartThings Outlet F-CEN-APP-1On/OffPress & hold the connect button to plug the outlet, and then release the button. It’s ready for pairing
SwannSirenSwannOne Outdoor SirenOn&Off StatusKeep press connect button, LED1 flash once tome, then release button, all LEDs flash to become pairing mode. Pairing waiting time only 8 sec (5 Beacon Request)
ClimaxPower OutletClimax Power Outlet PSM-29ZBSRON/Off/Zigbee RepeaterPower on. Click the pairing button on X10 APP, then press & hold the sensor button for 10 sec. Then release the button.
ClimaxZigbee RepeaterClimax Zigbee Repeater RMB-29ZBSRZigbee Repeater/USB Power ApapterPower on. Click the pairing button on X10 APP, then press & hold the function button for 10 sec. Release the button to finish pairing

ASRock X10 provides various working modes which function is only provided on high-end routers. By easily setting, router turns into an access point or bridge network card quickly.

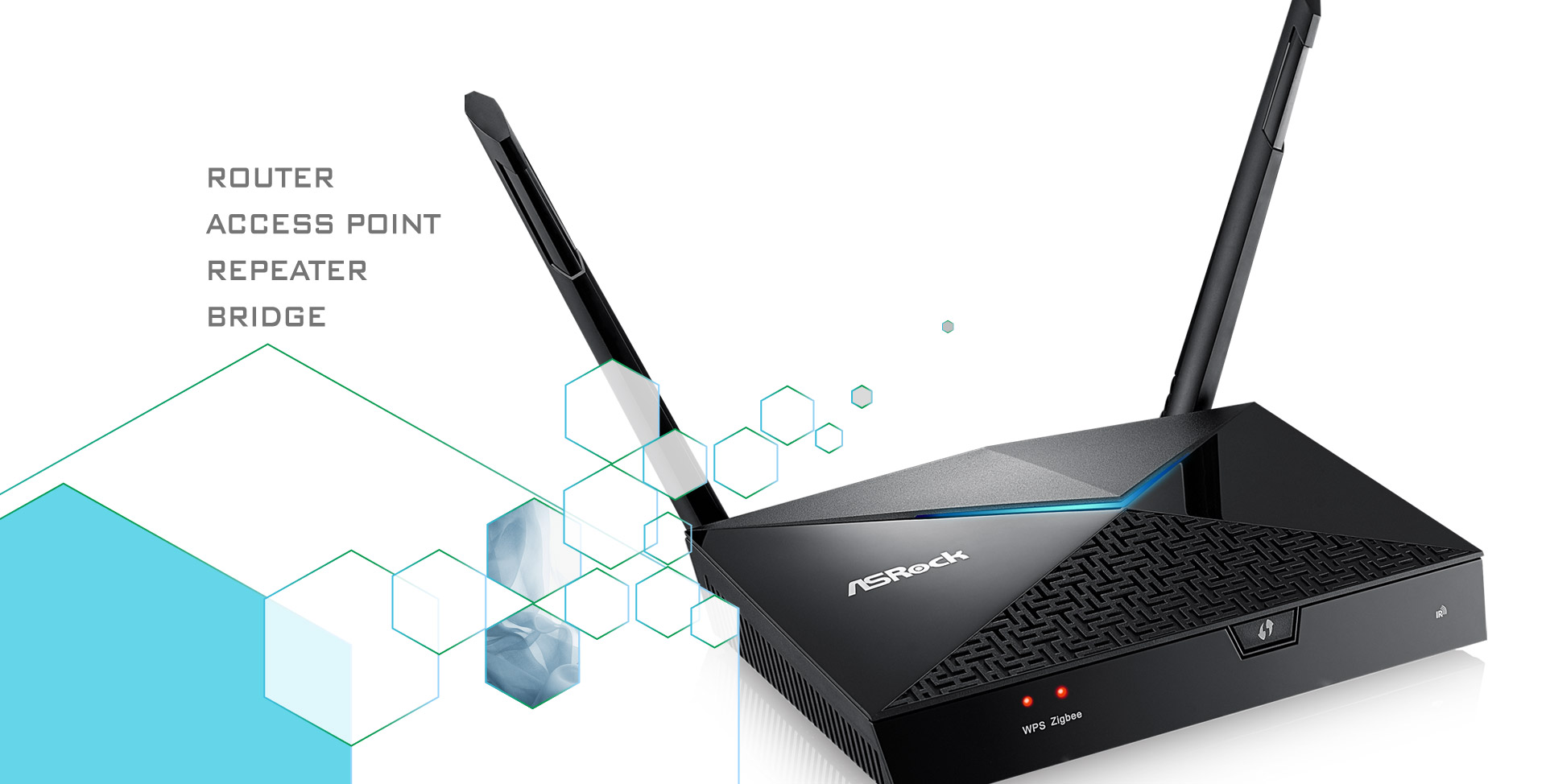

ROUTER MODE: X10 works as a W-Fi router with NAT and DHCP server function.
ACCESS POINT: X10 works with another SOHO router and provide W-Fi AP function.
REPEATER MODE: Set X10 as a W-Fi repeater to enhance Wi-Fi network.
BRIDGE MODE: X10 works with another SOHO router and provide wire forwarding function only.

Multi-user, multiple-input, multiple-output technology --- well known as MU-MIMO allows a Wi-Fi router to communicate with multiple devices simultaneously. This decreases the time each device has to wait for a signal and dramatically speeds up your network. Considering that the average household has upwards of eight devices battling for bandwidth simultaneously, MU-MIMO will increasingly improve your Wi-Fi experience.

Besides general SSID, ASRock X10 also builds in isolate SSID for children. This SSID enhance parental control function to make limited Internet access such as schedule, key word, URL filter and so on. Meanwhile, adult are still able to surf Internet and enjoy all contents without filtering through the original SSID. ASRock X10 also provide another SSID for visiting guests. By isolating specific SSID, any filter function or schedule limitation setting have no impact to another group.

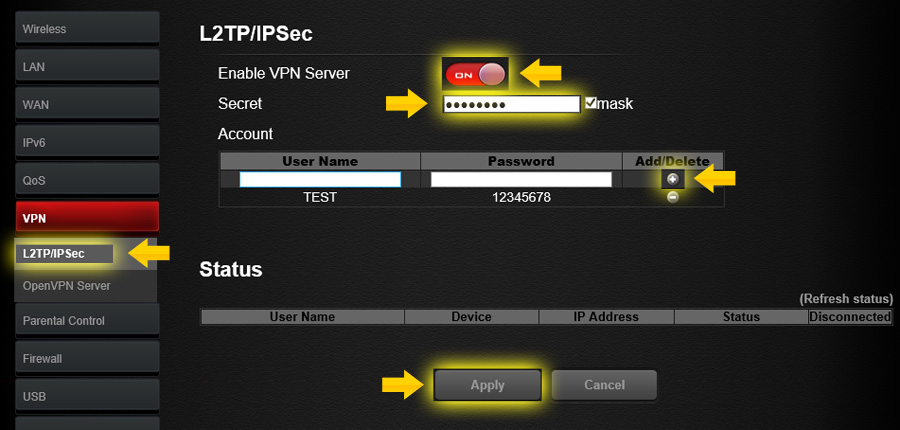

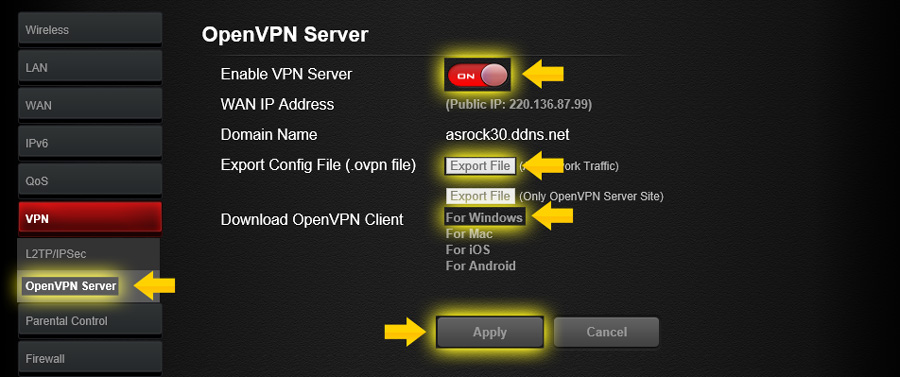

ASRock X10 provides VPN server function with multiple dialing methods, including high security L2TP/IPSec and OperVPN. Users are able to bridge their home network and remote client together easily, and share files with each other. Furthermore, remote mobile devices can access X10 USB storage through DLAN protocol as well, like music streaming etc.

X10’s high gain antennas which get signal strength stronger and greater coverage than standard antennas. Dual bands deliver up to 5.7 dBi (2.4GHz) + 5.4 dBi (5 GHz) per antenna for up to 2x the antenna gain on the 5 GHz/2.4GHz band compared to standard antennas. Omni-directional dipole antennas design and Beamforming technology strengthens the Wi-Fi signal and coverage for better connectivity.

Router Register

Register X10 router and add router into.

Philips Hue bulb pairing

To pair Philips hue and make connection with X10.

Sensor pairing

Add Scenes

Time Rules

Event Rules

IR learning

Geo-fence

IR database

USB storage

Multiple X10 Application

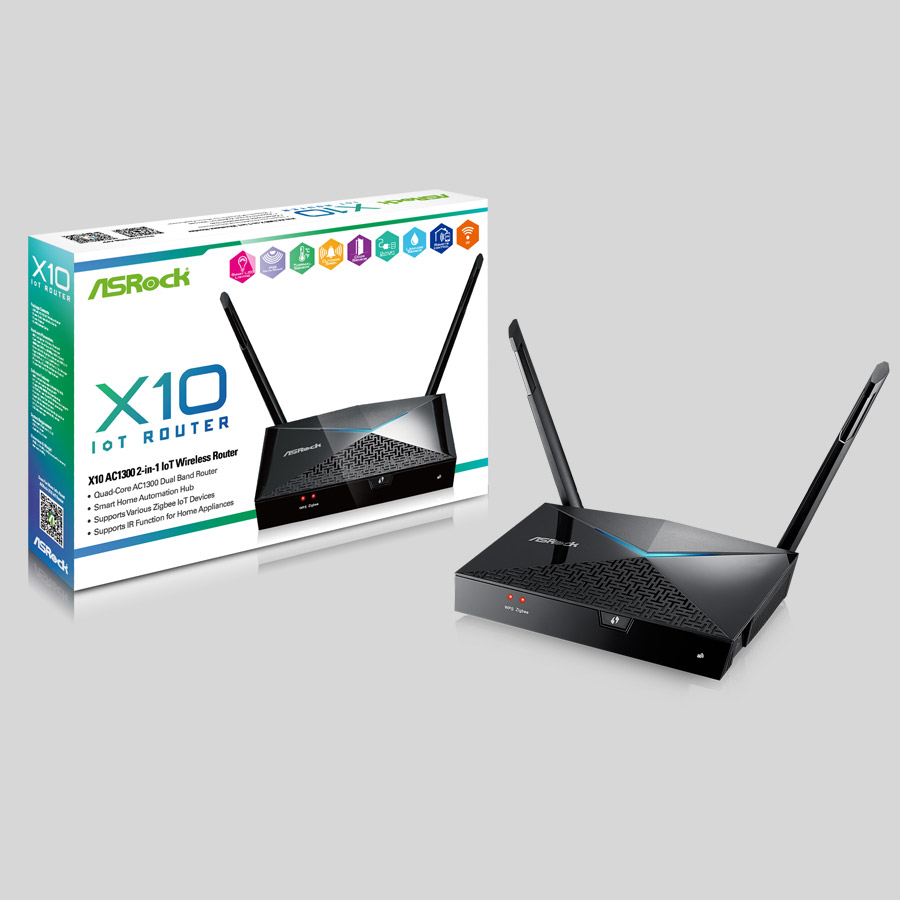

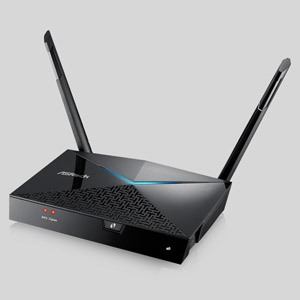

  • Package Contents

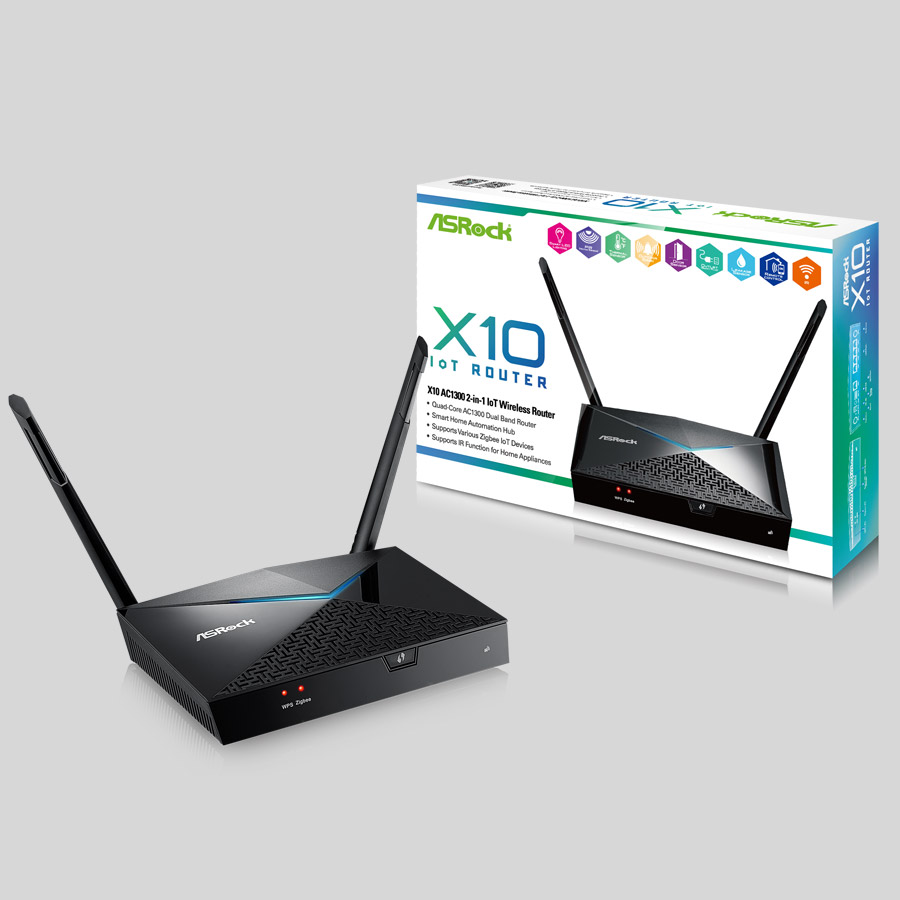

    • ASRock AC1300 IoT Wireless Router
    • Router Quick Installation Guide
    • Power Adapter
    • RJ-45 Ethernet Cable
  • Hardware Parameters
    • 802.11a/b/g/n/ac Wireless Standard
    • Qualcomm Quad-Core A7 Processor
    • 400Mbps 2.4GHz + 867Mbps 5GHz Speed
    • External 5 dBi High Gain Antennas (WiFi) x 2
    • Gigabit WAN Port x 1, LAN Port x 4
    • USB 3.0 Port x 1, USB 2.0 Port x 1 for Storage
    • IR Learning & List Mode Remote Control
    • Zigbee Radio for IoT Applications
  • Software Features
    • WiFi protected access WPA/WPA2-AES
    • IoT remote control through APP
    • Supports MU-MIMO & beamforming
    • L2TP/IPSec and OpenVPN VPN server support
    • Parental control for children protection
    • Guest SSID network access
    • Periodically reboot self-healing function
    • IoT Geo-fence automatically active
    • USB data access
  • System Requirement
    • Microsoft Windows 7, 8, 10
    • iOS 8.1 or later
    • Android 4.2 or later
  • Dimensions
    • 210 x 137.51 x 43 mm (w/o Antenna)
    • 210 x 160.51 x 186.72 mm (w Antenna)
  • Weight
    • 440 g
  • Wireless Standard
    • 802.11a/b/g/n/ac
  • Frequency Band
    • 2.4GHz, 5GHz Simultaneous
  • WAN Ethernet Port
    • 1 x RJ45 10/100/1000 WAN Port
  • LAN Ethernet Ports
    • 4 x RJ45 10/100/1000 WAN Port
  • USB Port
    • USB 3.0 x1, USB 2.0 x1
  • Wireless Speed
    • 2.4GHz: 500 Mbps
    • 5GHz: 800 Mbps
  • Wireless Security
    • WPA, WPA2,Mixed, WPS
  • Wireless Antennas
    • 2 x internal high performance antennas
    • 1 x sub-giga antenna (option)
  • Power Source
    • Output: 12V DC / 1.5A
  • Warranty
    • 1 Year
  • Operating temperature
    • 0° to 40° (32° to 104° F)
  • Operating humidity
    • 90% maximum relative humidity, noncondensing
  • Certification
    • FCC, CE, VCCI, IC, BSMI

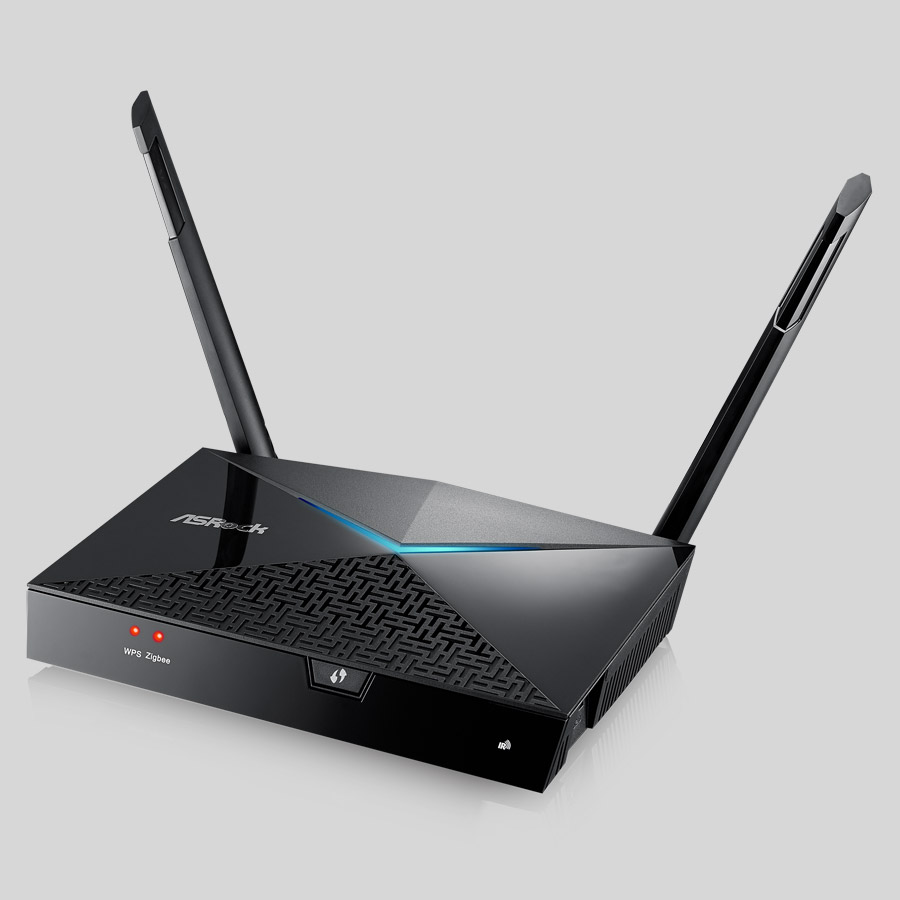

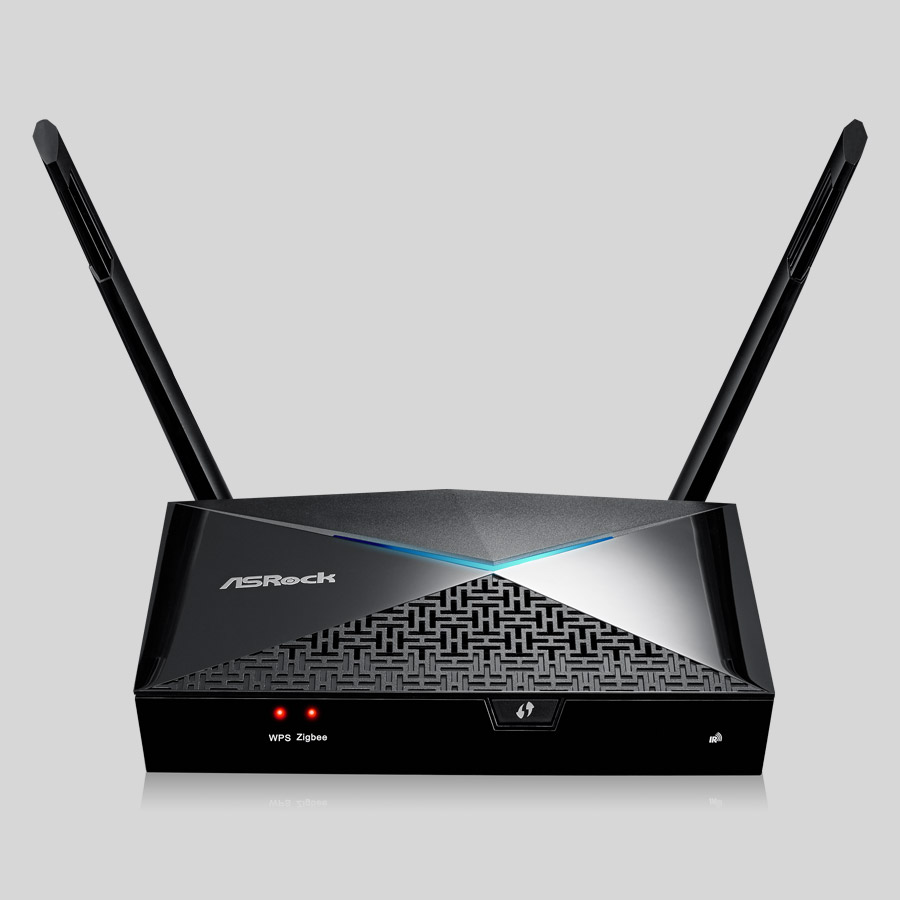

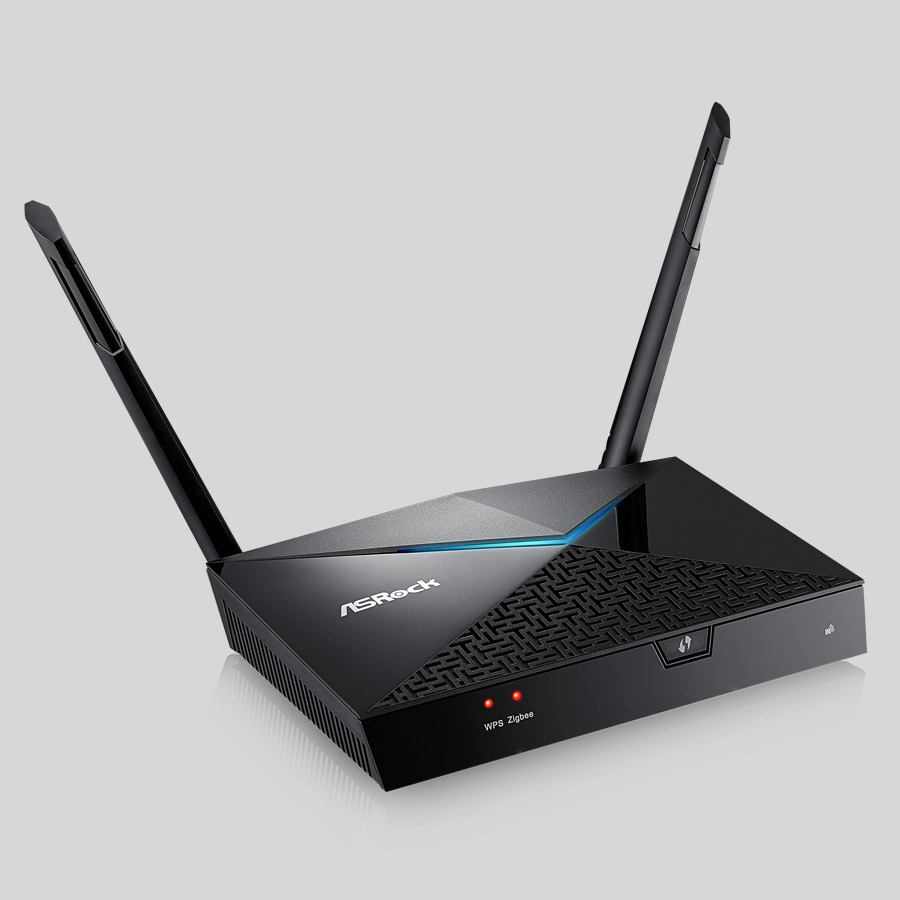

Gallery

Manual

  • X10 Manual (English)
    March 2017
    Download

Firmware

FAQSupport Request Form

I can't log into the router?
If you have modified the password and forgot it, you can restore to factory default and then go through the setup wizard.
NOTE: Please press the hardware reset button of the router over 10 seconds to reset router.
The router's hardware reset button, please refer to the Manual.
How do I access advanced settings?

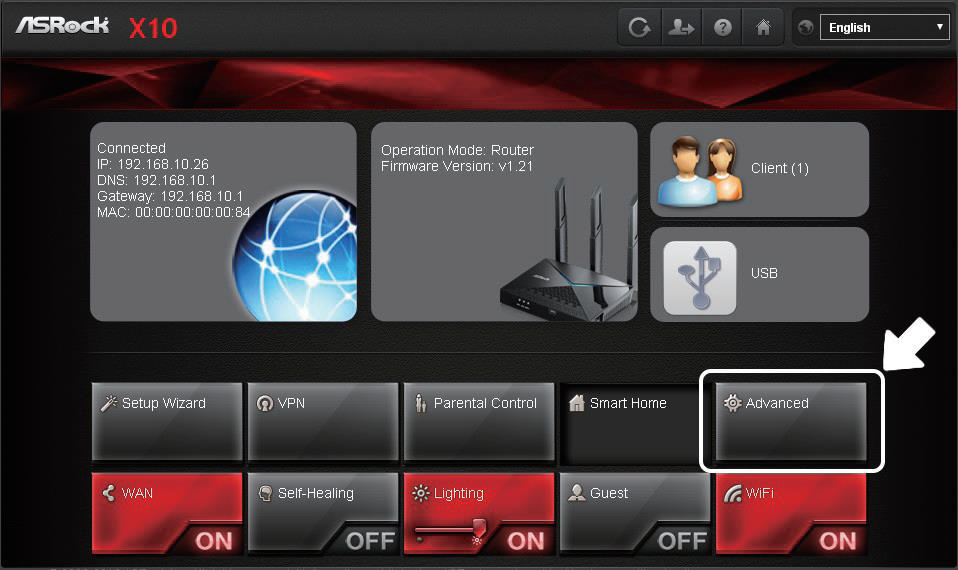

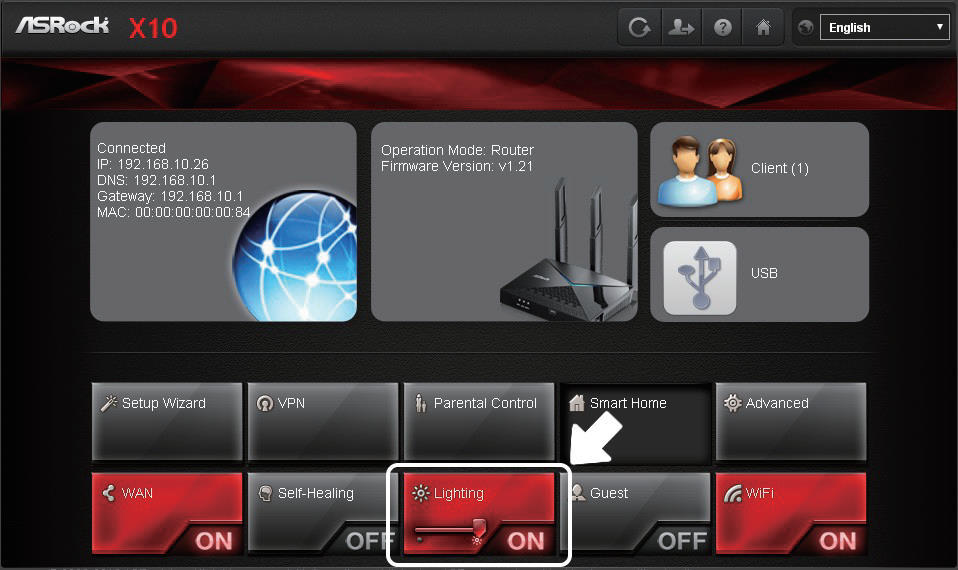

You can access ASRock router's advanced settings by clicking on the "Advance" button in the dashboard.
How do I change the log in password?
Find Administration-> Set Password in ASRock router's advanced settings, and then you can change the Log in name and password.

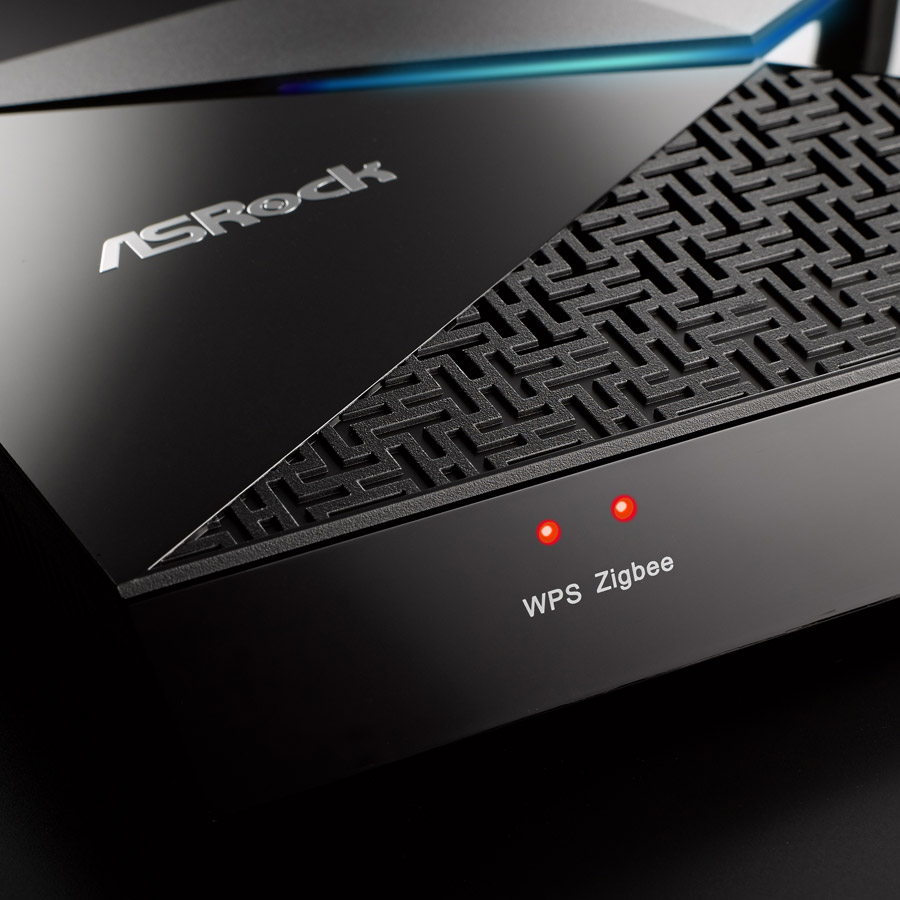

What does the X10 flashing LED mean?
Status LED Indicator

Flashing Dark Blue

Solid Dark Blue

Flashing Red

Solid Red
Starting upConnected to the internetADSL modem not detected / WPS connection failedModem detected but no internet connection
WPS LED

Flashing Red

Solid Red
Connecting to a WPS-enabled deviceWPS connecte
Why do I need the latest firmware?
Having the latest firmware will help increase the stability and performance of your product. Some additional features may also be implemented through firmware upgrades. Please make sure you have up-to-date firmware for the best user experience.
What is WPS (Wi-Fi Protected Setup)?
Wi-Fi Protected Setup (WPS) is a standard that attempts to ease the effort while establishing a wireless network. WPS will automatically configure a wireless network with a network name (SSID) and strong WPA data encryption and authentication. Be aware that WPA/WAP2 WIFI security and unique SSID names are necessary for a successful WPS setup.
What is the file system support for USB 3.0 storages?
ASRock X10 supports FAT, FAT32 and NTFS.
Why does X10 reboot on each changed settings?
To achieve the best stability, G10 tends to reboot while new configurations are applied. In order to save your time, you can click the “Later” button while you are trying to configure several settings on different pages.
How to restore to factory default settings?
There are two methods to restore your router to factory default settings.
Method A
a) Power on ASRock router and wait for 90 seconds to make sure that router is ready.
b) Connect your laptop or smart device to router through Ethernet cable or WIFI.
c) Open the browser on your client and try to access to router's web UI with the URL http://ASRock.router or http://192.168.1.1.
d) Proceed to Advanced settings and try to locate Administration->Restore/Save page.
e) Click on the Restore button and then router shall be restored to factory default settings after the reboot.


Method B
a) Power on ASRock route and wait for 90 seconds to make sure router ready.

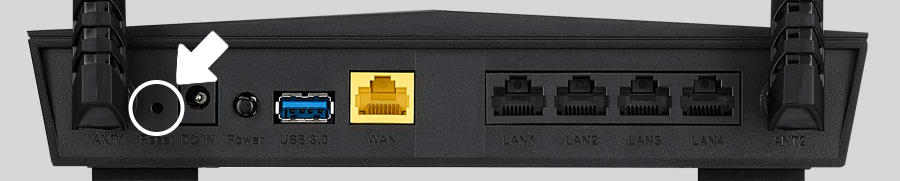

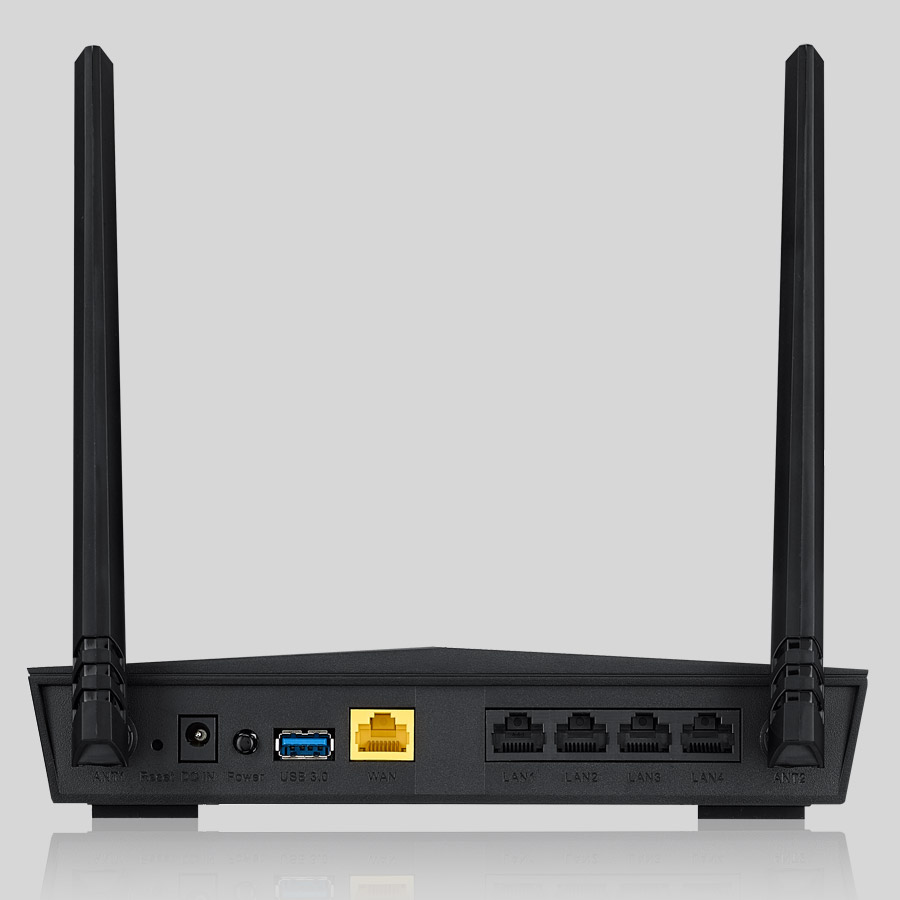

b) Find the reset button at the rear of router.
c) Find a paper clip or similar object to press and hold the reset button for 10 seconds.
d) Router shall be restored to factory default settings after the reboot.
How to upgrade the firmware?
If ASRock router is restore to factory default settings, users will be guided to upgrade to latest firmware during easy setup. But if ASRock router has been configured before, and users want to upgrade the firmware, please follow the tutorial below for your reference.

If you want to upgrade to the latest version:
a) Power on ASRock router and wait for 90 seconds to make sure router is ready.
b) Make sure router has internet connection (Solid dark blue LED ).
c) Connect your laptop or smart device to router through Ethernet cable or WIFI.
d) Open your browser (Google Chrome or FireFox are preferred) on your client, and then try to access router's web UI using the URL http://ASRock.router or http://192.168.1.1.
e) Proceed to Advanced settings and try to locate the Administration -> Firmware Upgrade page.
f) Click on the "Check" button and confirm the prompt message.
g) Router will be upgraded to the latest official firmware within about 2 minutes.


If you want to upgrade to a certain version:
a) Power on ASRock router and wait for 90 seconds to make sure router is ready.
b) Make sure router has internet connection (Solid dark blue ).
c) Make sure you have the correct firmware for router Gaming router.
d) Connect your laptop or smart device to router through Ethernet cable or WIFI.
e) Open your browser on your client and try to access router's web UI using the URL http://ASRock.router or http://192.168.1.1.
f) Proceed to Advanced settings and try to locate the Administration -> Firmware Upgrade page.
g) Click on the "Choose File" button and choose the correct firmware and then click on "Update".
h) Router will start to upgrade the firmware within about 2 minutes
How to make G10 operate as a WIFI repeater?
The following tutorial shows you how to configure G10 as a powerful WIFI repeater or extender.

a) Make sure that the host WIFI router has access to the internet, and the host WIFI router is configured with SSID broadcast enabled and WPA2 WIFI security
b) Power on G10 and wait 90 seconds to make sure G10 is ready
c) Connect your laptop or smart device to G10 through Ethernet cable or WIFI
d) Open your browser on your client and try to access G10’s web UI using the URL http://asrock.router or http://192.168.1.1
e) Proceed to Advanced settings and try to locate the “Administration -> Operation Mode” page
f) Select “Repeater Mode” and apply settings

g) Remove the WAN port cable from G10 and wait 2 minutes to make sure G10 is ready for repeater mode
h) Press and hold the 5G WPS button on G10 until the led flashes in blue (WPS handshaking indicator)
i) Press and hold the 5G WPS button on the host router for 5 seconds and make sure the host router enters WPS handshaking state
(* Note: If the host router does not have 5G WIFI capability, replace the procedures above with the 2.4G WPS button)
j) Wait until G10 WPS handshaking is successful with the host router (The LED shows solid light blue for 5 seconds)
k) After WPS paring is successful, please wait 2 minutes for G10 to reboot and load configurations
l) G10 should now be connected to the host WIFI router as a WIFI repeater (The LED shows solid dark blue)
m) Open your smart device or laptop to search for the WIFI SSID and you should be able to find the G10 repeater SSID with the following naming rules
2.4G SSID : "Host Router SSID" + "_RPT_" + "4 characters of HEX code (0-9,A-F)”
5G SSID : "Host Router SSID" + "_RPT5G_" + "4 characters of HEX code (0-9,A-F)”
How to switch G10 back to wireless router mode ?
a) Make sure your G10 is operating as a WIFI repeater
b) Connect your laptop or smart device to G10 through Ethernet cable or WIFI
c) Open your browser on your client and try to access G10’s web UI using the URL http://asrock.repeater

d) Select “Wireless router mode” and apply settings
e) Wait 90 seconds and G10 shall operate as a wireless router
How to configure G10 as an access point ?
Sometimes users want the WIFI router to act like a simple access point because they may already have a gateway router in their network environment and do not want two different local area networks in the network topology. Here is an example to show you how to configure G10 as a powerful access point.

a) Acquire the gateway’s IP address and reserve an available IP address for the local area network.
(In this example: The gateway IP is 192.168.1.1, and the reserved IP address is 192.168.1.200)
b) Power on G10 and wait 90 seconds to make sure G10 is ready (leave the WAN port open)
c) Connect your laptop or smart device to G10 through Ethernet cable or WIFI
d) Open your browser on your client and try to access G10’s web UI using the URL http://asrock.router
e) Proceed to advanced settings and locate the WAN -> INTERNET page and then configure the following options

f) Click the “Apply” button and then click “Later”
g) Locate the LAN page and then modify the following options
h) Click the “Apply” button and then click “Reboot”
i) Connect G10’s LAN port to the gateway router’s LAN port with Ethernet cable
j) Wait 90 seconds and then G10 should work as an access point
May I turn off the LED indicator ?
Yes, you can easily turn on/off the LED indicator using the dashboard.
How to test the 4T4R performance with G10?
Here is a general tutorial for WIFI performance benchmark.

a) Prepare two G10 routers and setup one as router mode while the other is repeater mode
b) Download iperf on both clients and make one client as an iperf server while the other one is an iperf client
c) Download iperf at https://iperf.fr/iperf-download.php and run iperf using command prompt with the following strings
Server side: iperf -s -w 2M
Client side: iperf -c “iperf server’s IP” -w 2M
d) You should get more than 900 Mbps throughput while the distance is lesser than 3 meters and the throughput limitation comes from Giga Ethernet.
What is QoS?
QoS stands for Quality of Service. It's the ability for a router to differentiate Internet traffic and assign different priorities to specific traffics in order to maximize the bandwidth.
What's the difference between ASRock Gaming Boost and Qualcomm Stream Boost?
ASRock Gaming Boost is the same as Qualcomm Stream Boost.
How to test whether Gaming Boost really works?
First of all, you need some bandwidth consuming applications in your network environment. We suggest running a BitTorent client with lots of active and popular torrents, and prepare another powerful client for several 2K/4K YouTube videos. These applications should soak out every bit of your internet bandwidth. Then you can try to play online games with Gaming Boost on or off to experience the benefits of Gaming Boost.
How is ASRock Gaming Boost different from other QoS services?
ASRock Gaming Boost gives G10 router the intelligence to recognize devices, applications in your network environment. It also makes sure devices can get the required bandwidth according to each application in order to achieve the best internet experience.
Why do we need to setup the bandwidth for ASRock Gaming Boost?
QoS service works like serving food to your customers. The total quantities of the food must be known first before a reasonable serving approach. You can fill the bandwidth according to the contract with your ISP or you can visit http://www.speedtest.net for more accurate internet bandwidth benchmark.
Does ASRock router support IPTV?
There are lots of IPTV providers. In most cases, IPTV boxes should be functional behind the router. But we still suggest you to check your IPTV operator if your IPTV box works fine with a private IP.
ASRock G10 router support DDWRT ROMs?
Yes, DDWRT support now. Please download as below link
http://download1.dd-wrt.com/dd-wrtv2/downloads/betas/2017/
What is Self-Healing?
ASRock router has implemented a scheduled reboot at a specified time slot on a weekly basis. You can arrange these weekly rebooting events to ensure your router is working in its best condition.
Does ASRock router support BT download clients?
Yes, please update the latest firmware.
How to use ASRock router BT download client ?
a) You can locate BT Download Agent section at the bottom side of USB Application page.
b) Make sure you apply USB storage to router's USB port first.
c) Select the download location and then enable the Download Agent function.
d) Apply the setting and wait router reboot.
e) Click the Config page button and then you will be redirected to BT download agent setup page.

f) Apply BT torrents or BT URL with steps in the following picture.
g) You can locate your files at "Download Agent" folder in the root of USB storage.
How to set up Port Forwarding in ASRock router?
a) Proceed to advanced settings and locate the WAN -> Port Forwarding page and then configure the Port Following options.
b) Turn on Port Forwarding button.
c) Click the "Add preset list" button and select one.
d) Enter port forwarding IP address and Click the "Apply" button.
e) Click the "Apply" button and then click "Reboot".
How to set up Port Trigger in ASRock router ?
a) Proceed to advanced settings and locate the WAN -> Port Trigger page and then configure the Port Trigger options.
b) Turn on port Trigger button.
c) For example. Enter the service "TEST", Trigger Port "80" and Incoming Port " 21, 21".
d) Click the "Add" button.
e) Click the "Apply" button and then click "Reboot".
How to set up DDNS in ASRock router ?
a) Proceed to advanced settings and locate the WAN -> DDNS page and then configure the DDNS options.
b) Turn on DDNS Client button.
c) You have to activate DDNS services account first then select the one of DDNS Client that you have been activate.
d) Entre the Host name, user name and password of your account.
e) Click the "Apply" button and then click "Reboot".
f) You can check the connection status as status.
How to set up VLAN Tag in ASRock router ?
a) Proceed to advanced settings and locate the Administration-> VLAN page and then configure the VLAN options.
b) Turn on VLAN Enable Client button.
c) Entre the name, Vid and click Tag Port.
d) Click the "Add" button.
e) Click the "Apply" button and then click "Reboot".
How to set up VPN sever in ASRock router ? (Windows OS example)
a) Proceed to advanced settings and locate the VPN-> OpenVPN page and then configure the OpenVPN options.
b) Turn on OpenVPN Enable Client button.
c) Click the "Apply" button and then click "Reboot".
d) Download and install OpenVPN software. Please download the software as below link.
e) To install OpenVPN client on your Windows based client device.
f) Export client.ovpn file and copy to C:\Program Files\OpenVPN\config.
g) Run OpenVPN GUI and Right click the icon and click "Connect" on the windows task list.
h) You can see the screen on the windows task if connecting successfully.
How to set up VPN sever in ASRock router ? (Android OS example)
a) Proceed to advanced settings and locate the VPN-> L2TP/IPSec page and then configure the L2TP/IPSec options.
b) Turn on L2TP/IPSec Enable VPN Server Client button.
c) Set up the Secret.
d) Set up the Account User Name & Password.
e) Click the "Add/Delete" button.
f) Click the "Apply" button and then click "Reboot".


(Android OS example)
a) Edit VPN profile.
b) Set up the Account User Name.
c) Select the Type L2TP\IPSec PSK.
d) Set up the Server address.
e) Set up the IPSec pre-shared key and click "Save".
f) Set up the Account User Name & Password then click "Connect".
g) You could check the VPN connection information.

Forum

http://forum.ASRock.com/forum_topics.asp?FID=17&title=networking-products

  • ABOUT
  • About ASRock
  • Contact Us
  • Organization
  • Conflict Minerals Statement
  • Investor Services
  •
  • NEWS
  • Press Release
  • Awards
  •
  •
  • SUPPORT
  • Download
  • FAQ
  • Technical Support
  • COMMUNITY
  • Facebook
  • YouTube
  • Forum
  • Dealer & Media Zone
  • Wallpaper
© 2021 ASRock Inc. All rights reserved. Information published on ASRock.com is subject to change without notice. | Terms of Use Notice | Privacy Policy
