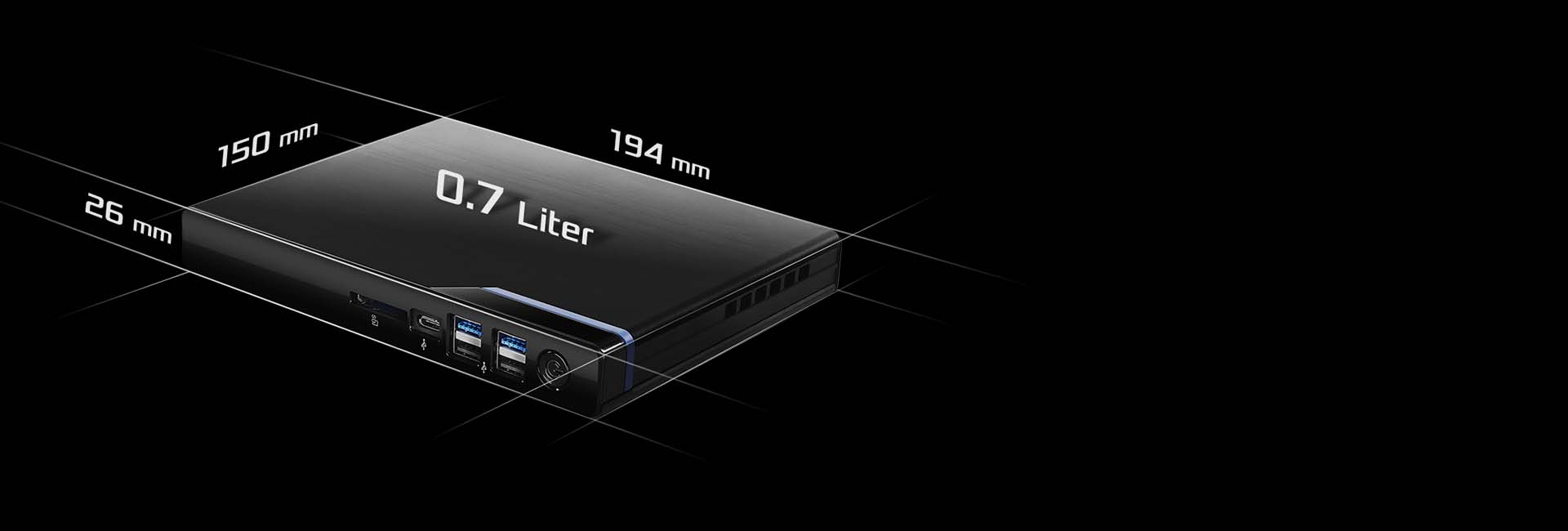

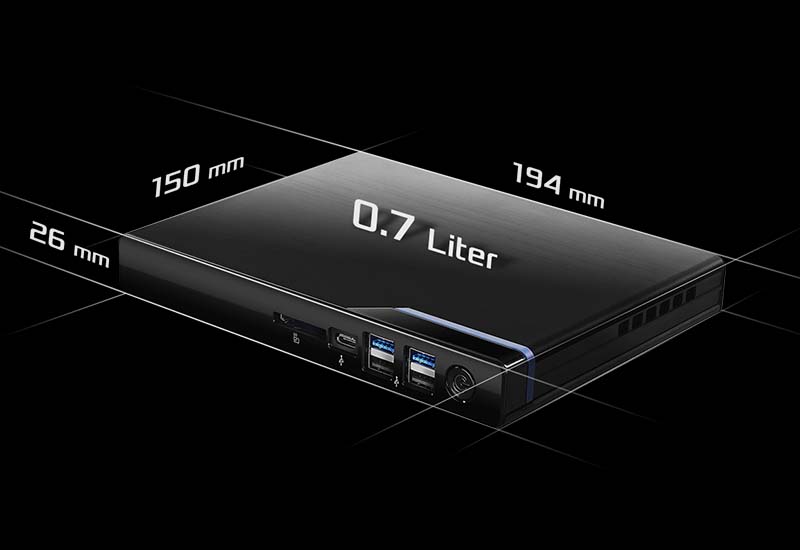

Mars ADL series features slim 26mm thickness with only 0.7 liter compact size. Adopts the powerful 12th Gen Intel® Core™ mobile processors and rich connectivity.

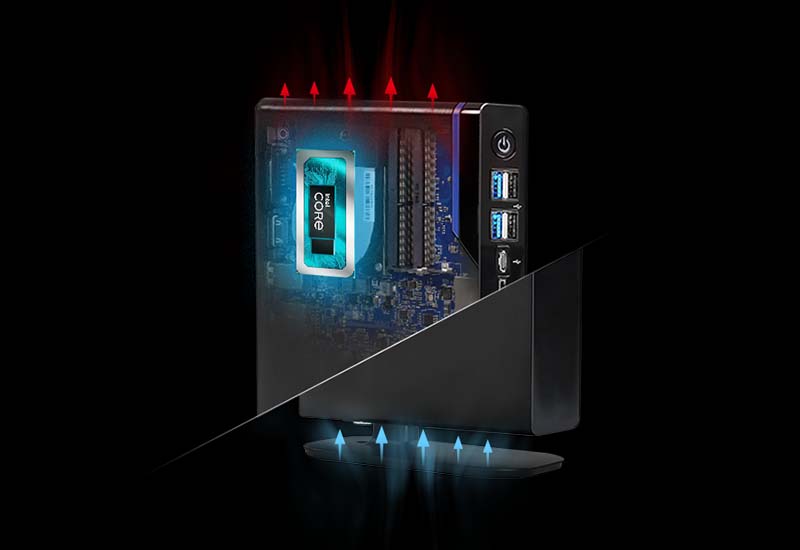

12th Gen Intel® Core™ mobile processors
Mars ADL series is powered by the latest 12th Gen Intel® Core™ mobile processors, offering unrivaled performance.
*Specifications are vary by different models.

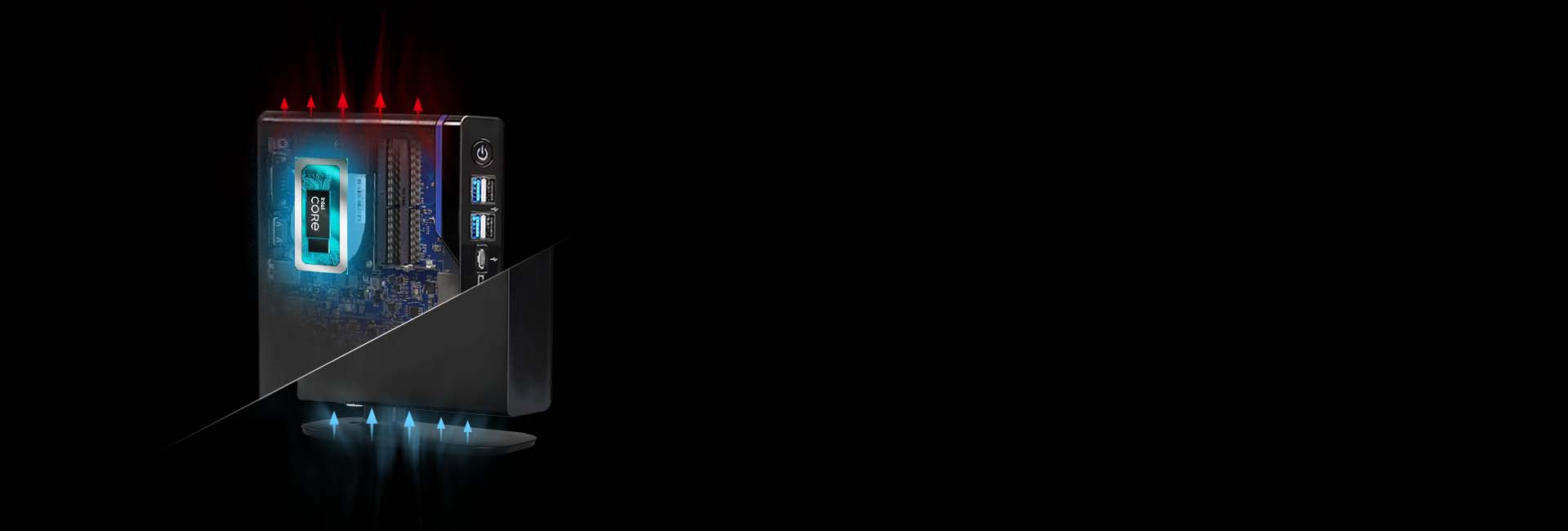

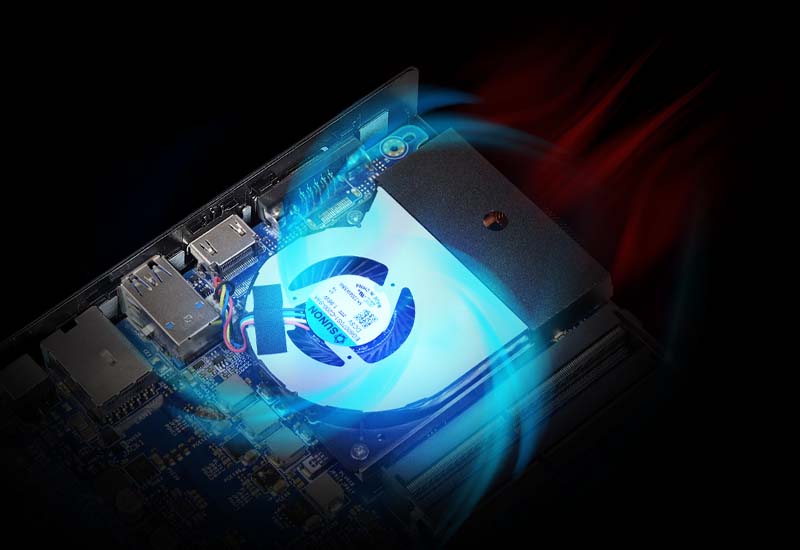

Because of high-performance thermal solution, Mars draws less than 24dB at idle and keeps CPU cool for upmost applications.
*Test environment: the microphone is 50cm away from test machine in Semi-Anechoic chamber

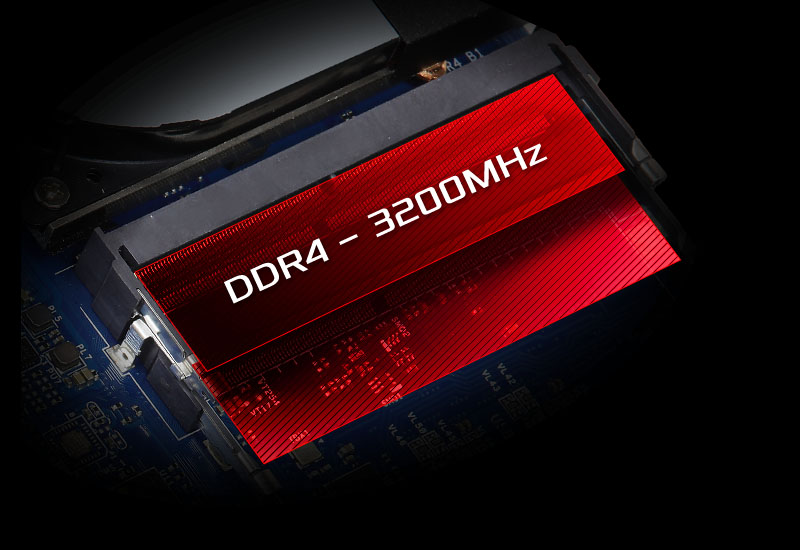

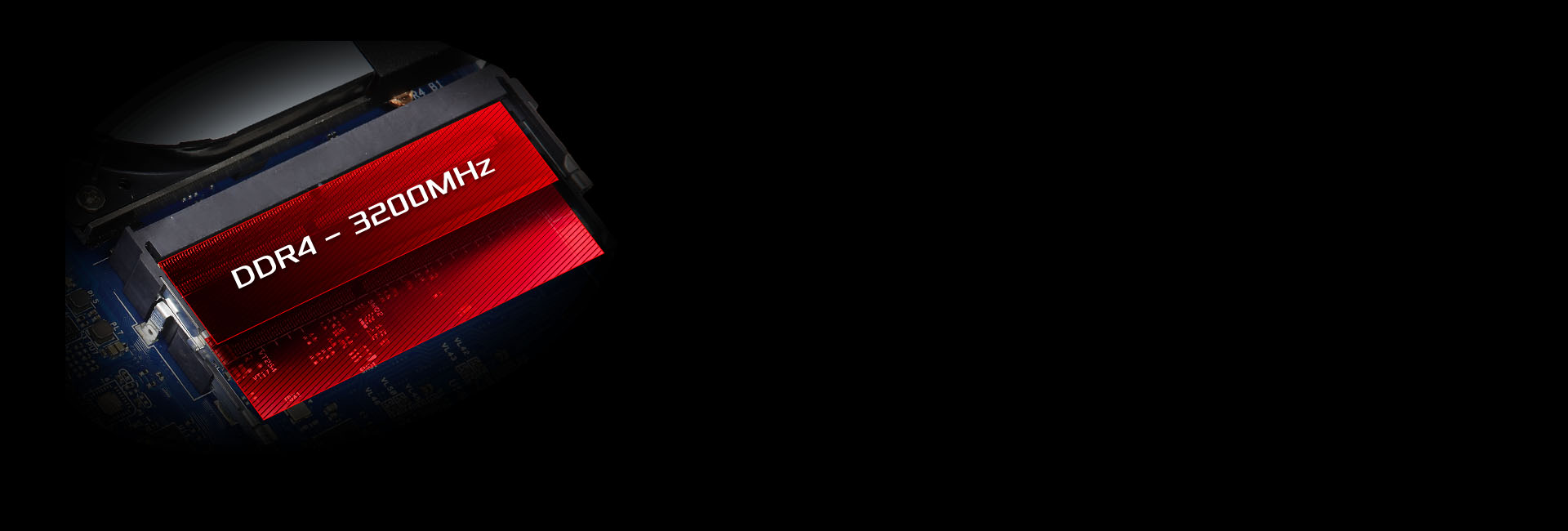

High Speed Memory
Mars ADL series supports up to 64GB dual Channel DDR4-3200MHz memory to deliver great performance.

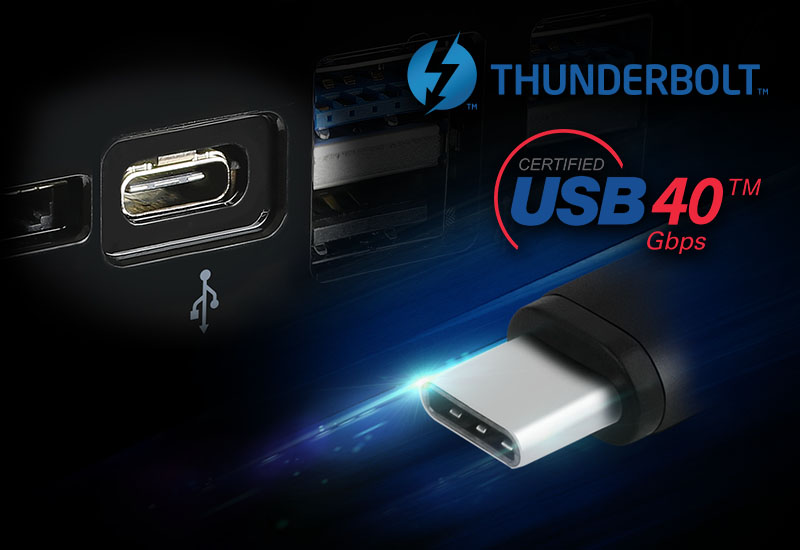

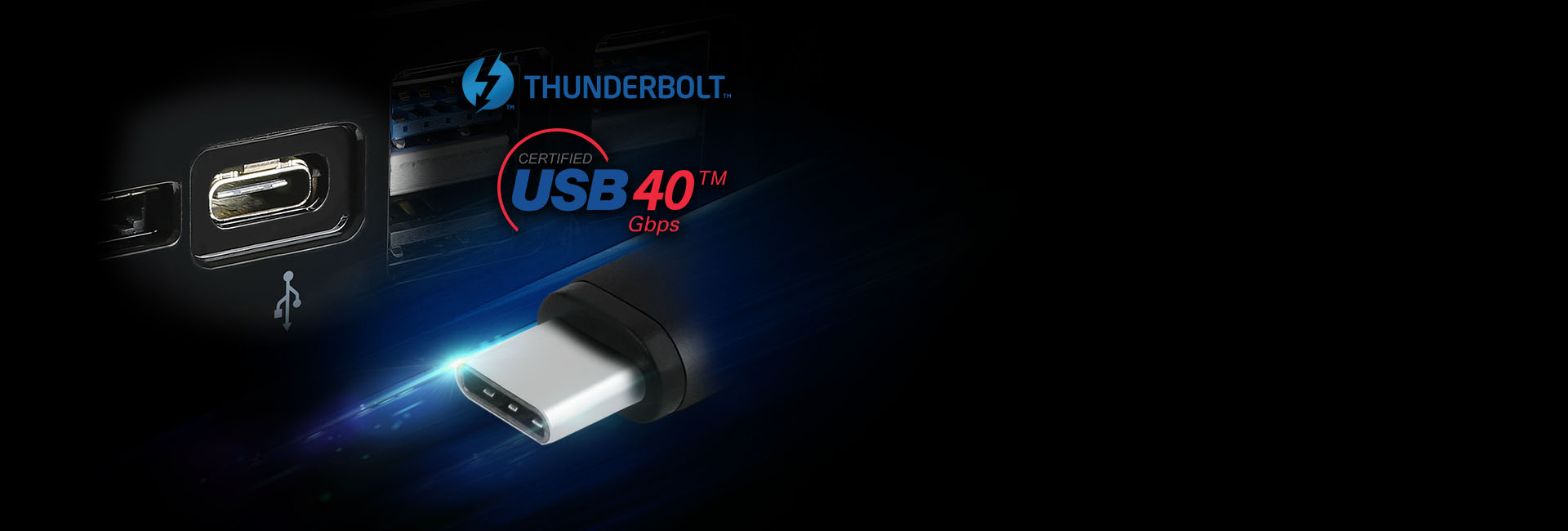

Thunderbolt™ 4/USB 4.0 Type-C
A Thunderbolt™ 4/USB 4.0 Type-C is available on the front I/O, offering a high-resolution(8K@60Hz) Intel® Thunderbolt™ 4, 15-watt(5V3A) power delivery, and a lightning-fast data transfer up to 40Gb/s.

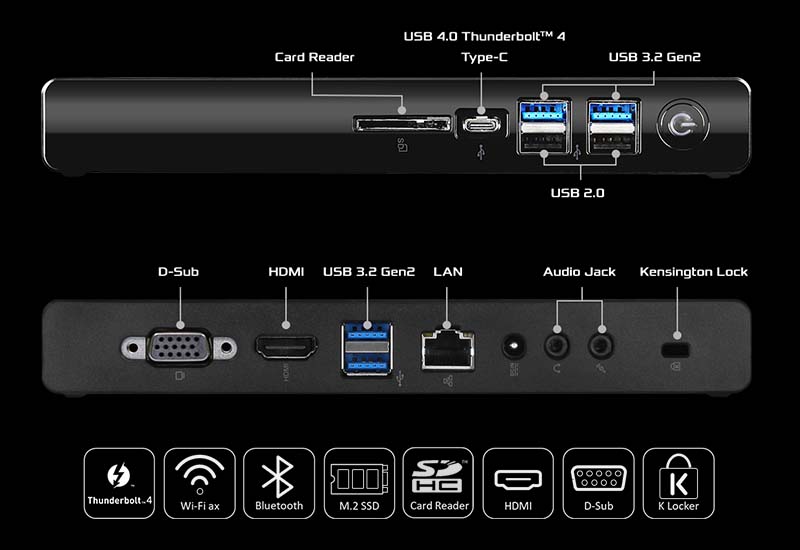

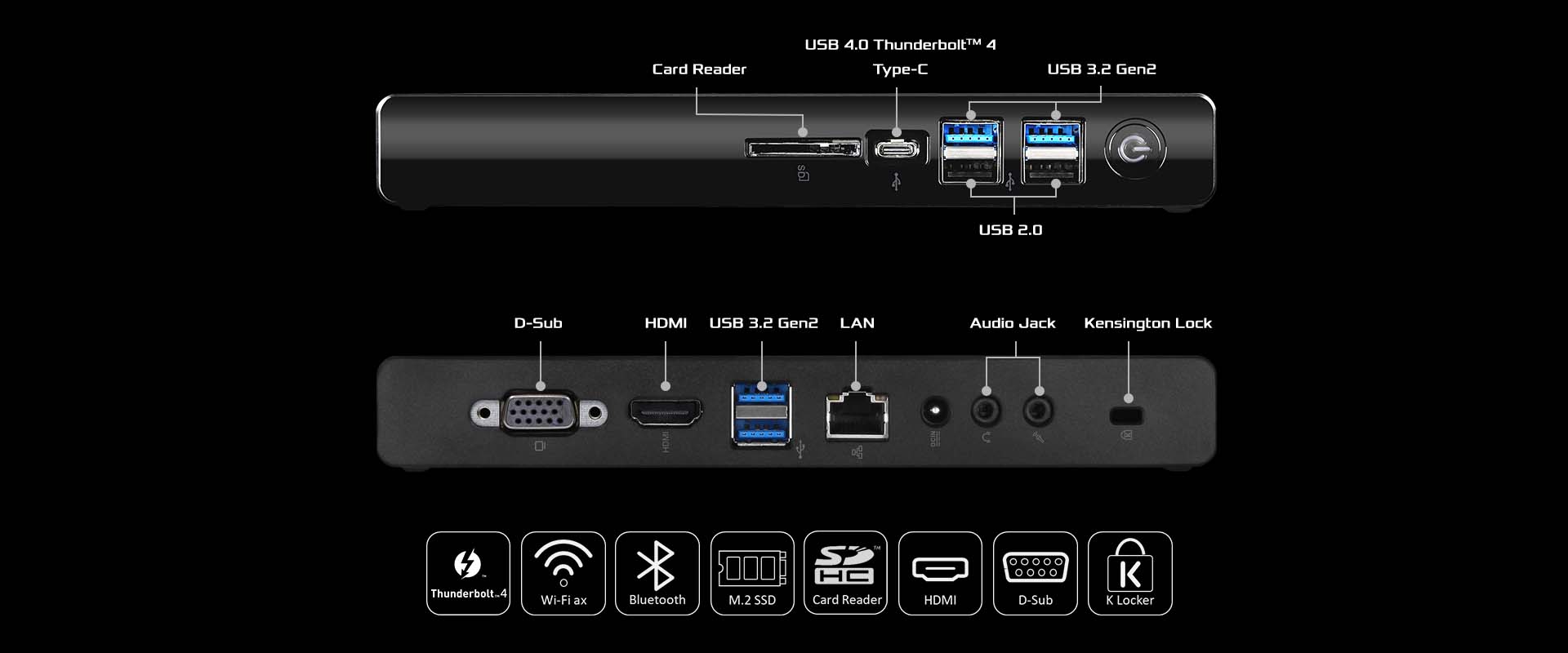

Abundant USB Connectivity
Mars ADL series supports seven easily accessible USB ports for all of your peripherals, including one Thunderbolt™ 4/USB 4.0 Type-C port. Front: 1 x USB 4.0 Thunderbolt™ 4 Type-C (40Gb/s) 2 x USB 3.2 Gen2 Type-A (10Gb/s) 2 x USB 2.0 Rear: 2 x USB 3.2 Gen2 Type-A (10Gb/s)

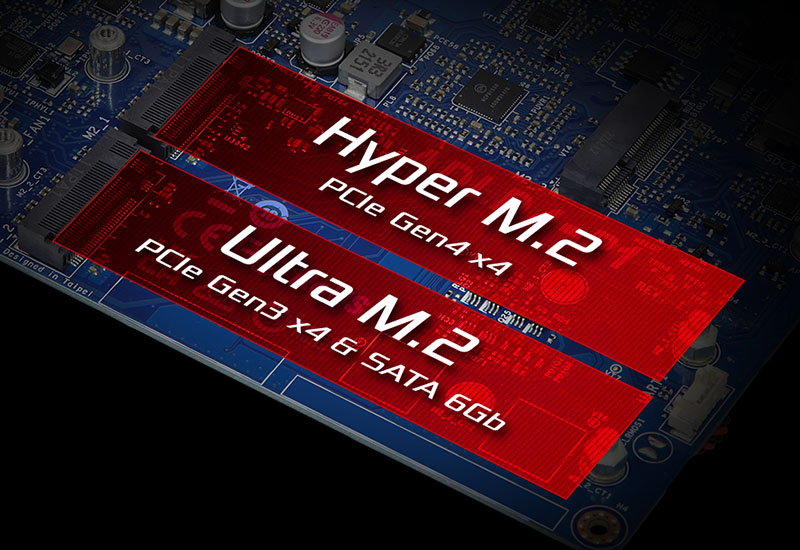

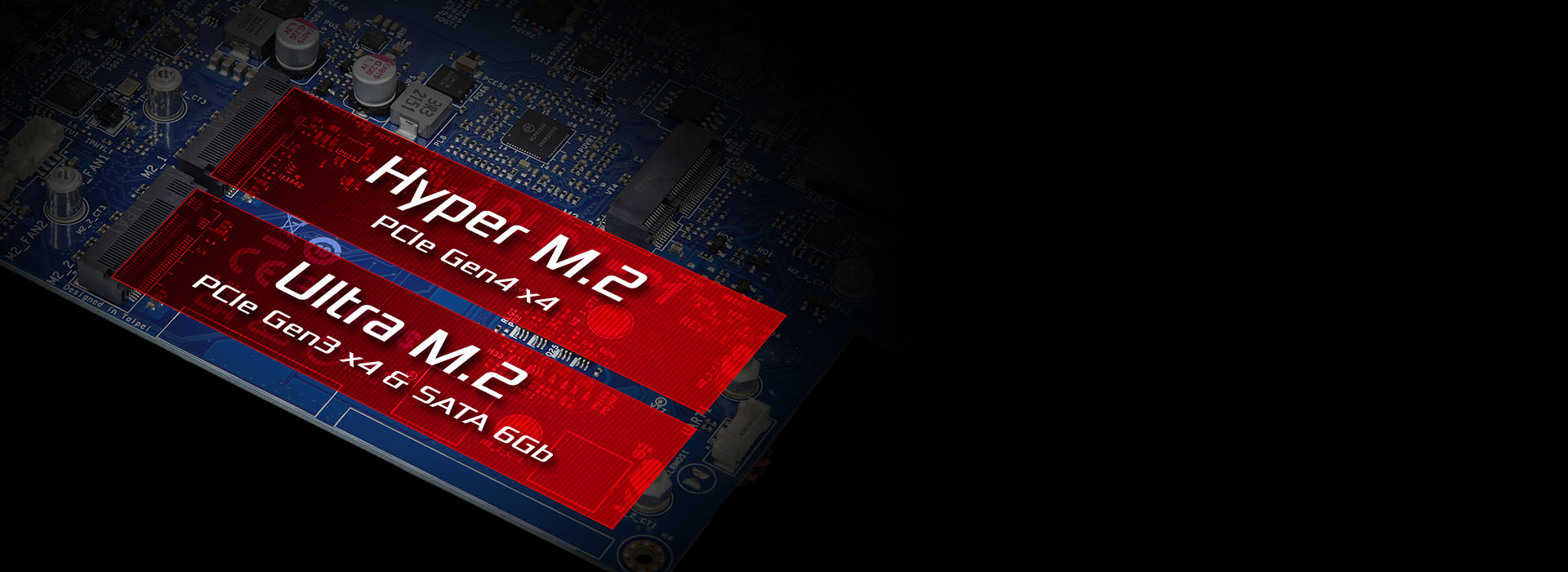

Two M.2 Storages
Mars ADL series provides two M.2 2260/2280 slots. One of them supports PCI Express 4.0 standard which is capable of performing twice the speed compared to previous 3rd generation, giving a rapid data transferring experience. 1 x Hyper M.2 – PCIe Gen4 x4 1 x Ultra M.2 – PCIe Gen3 x4 & SATA 6Gb
